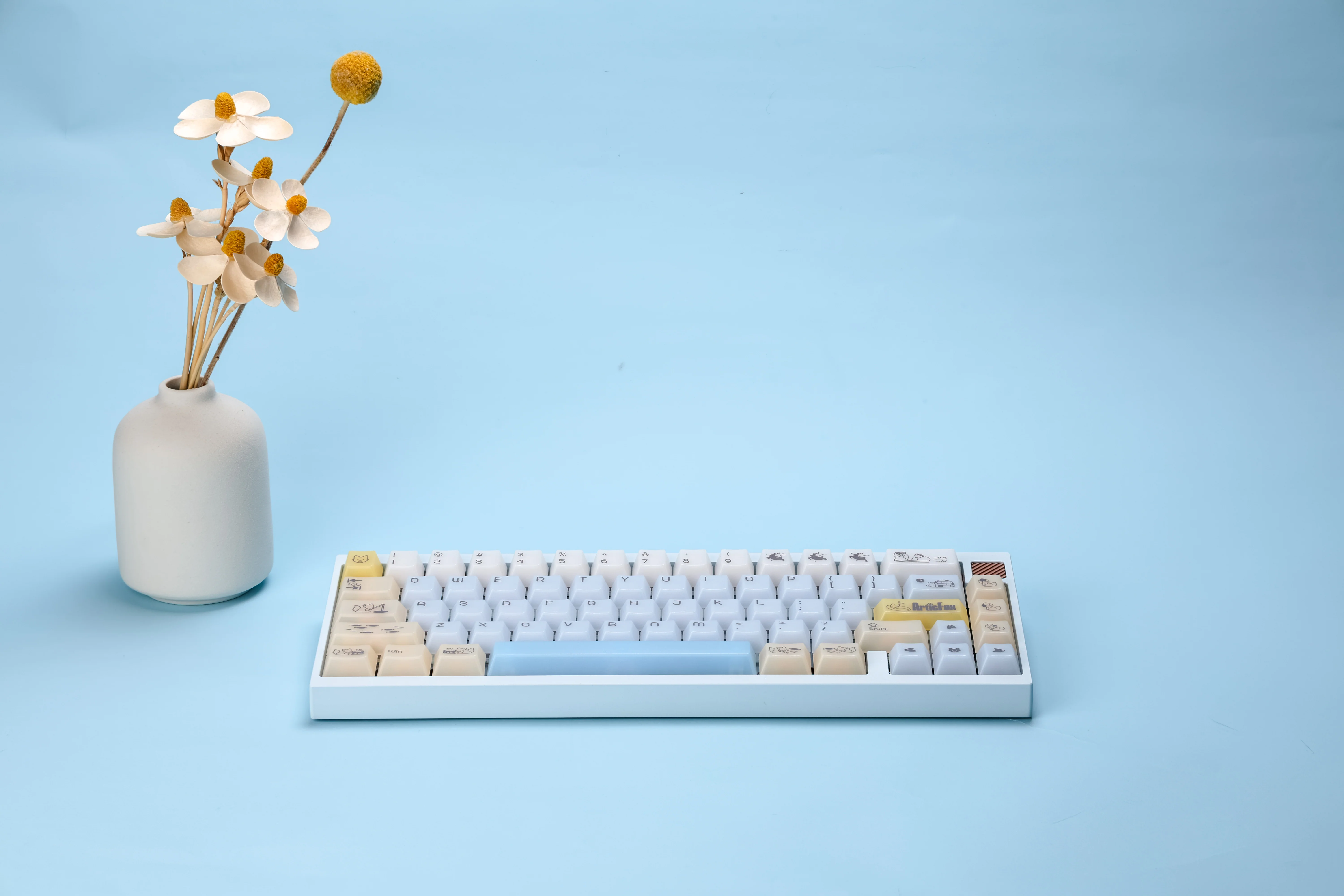

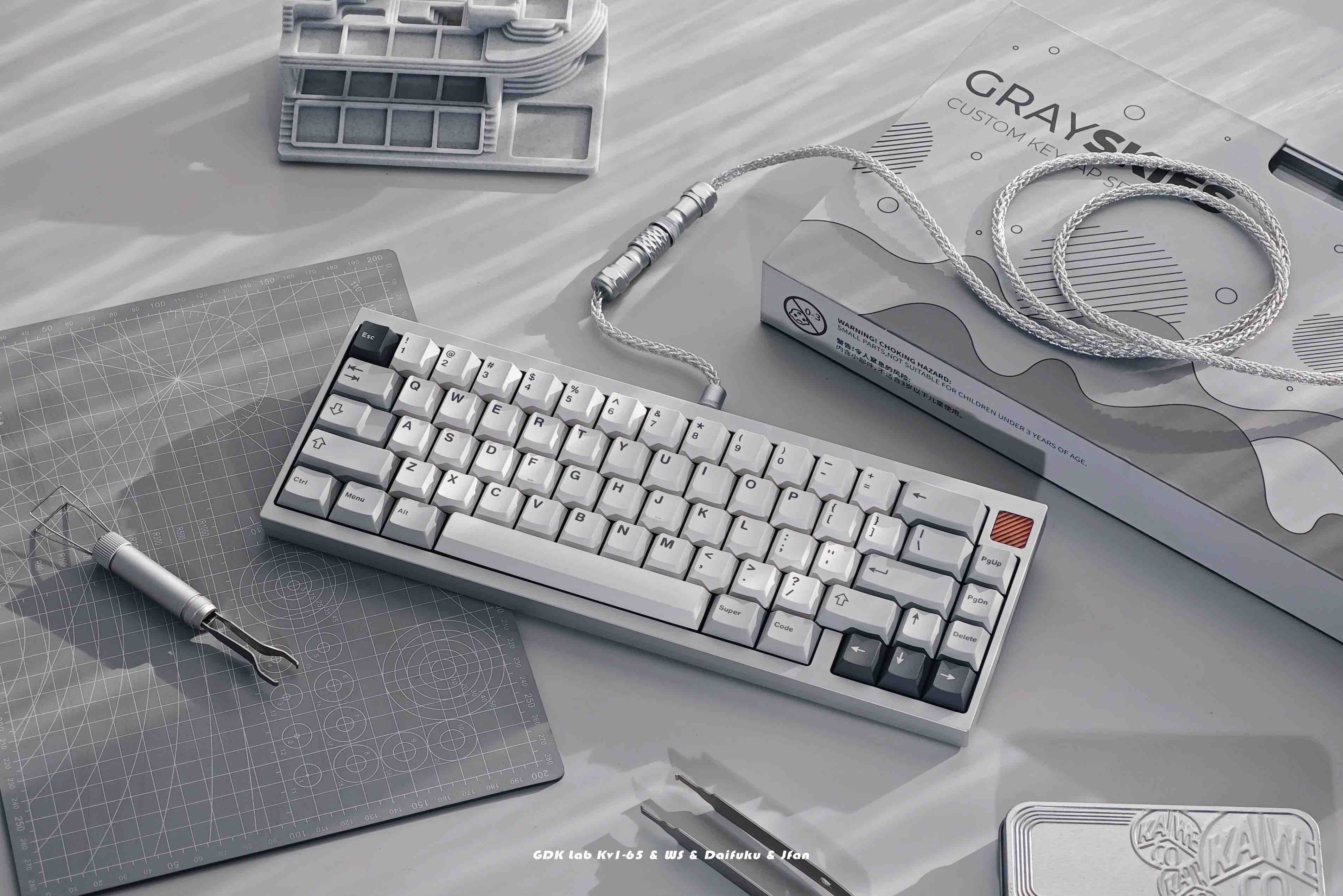

GDK LAB KV-1 65

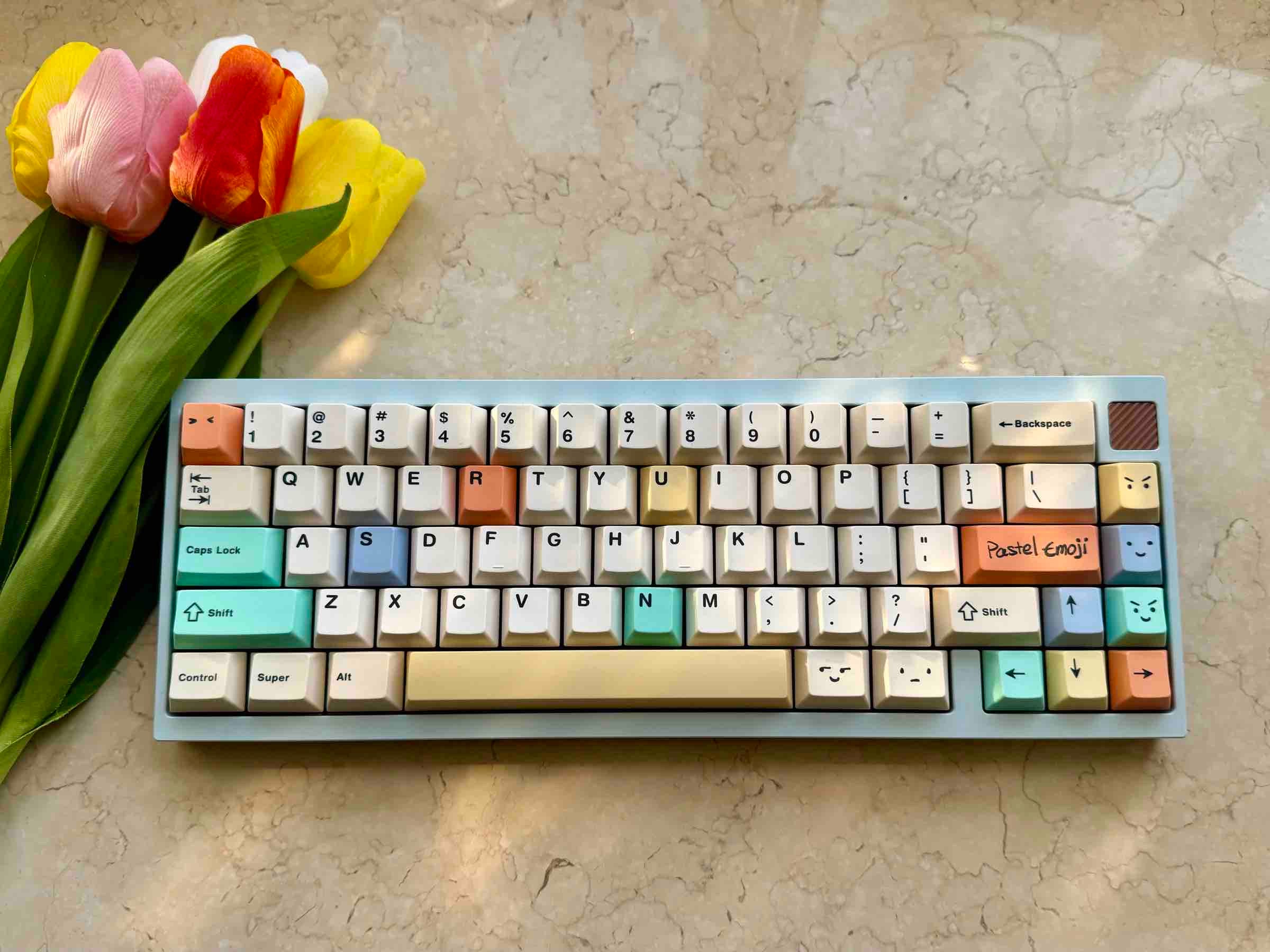

KV1-65% is a minimalist 65% keyboard designed by GDK Lab, marking the studio's first entry in the K series. GDK Lab opted for a subtractive design approach, resulting in an overall shape that is both simple and restrained, with fluid lines that convey a sense of vitality. After completing the standard structure, the team focused on refining the details and texture, and the 220-mesh aluminum case makes each touch of the keyboard truly impressive.

Features

Multiple Color Options

With an impressive selection that features as many as 12 color options available, you can be confident that you will discover at least one that perfectly suits your personal taste and preferences.

Ball-catch Structure

Make installation and debugging more convenient. And it was designed to have a crisper sound and clearer disassembly and assembly feedback.

Gasket Mount

The KV1-65% features a gasket design that utilizes custom silicone rubber bridges for support and a soft, cushioned feel.

VIA & QMK Support

VIA is a tool that enables keyboard configuration. With the VIA configurator, you can map keys to the physical layout of your keyboard.

Long-Lasting Battery Life

The KV1-65% offers 2 2500mAh battery, delivering up to 2 weeks of usage. Long battery life ensures uninterrupted work and entertainment, allowing you to stay productive and stay connected wirelessly for longer, without the need for frequent charging. What's more, it allows you to charge and use at the same time in wired mode.

Specifications

Mount: Gasket mount
Connectivity: Tri-mode
Material: 6063 CNC Aluminum (220 mesh)
Surfacing: Anodized, Spray paint
Acoustic: Poron pad *1/Bottom pad *1(Customers can try not adding any padsand still get a good typing sound)

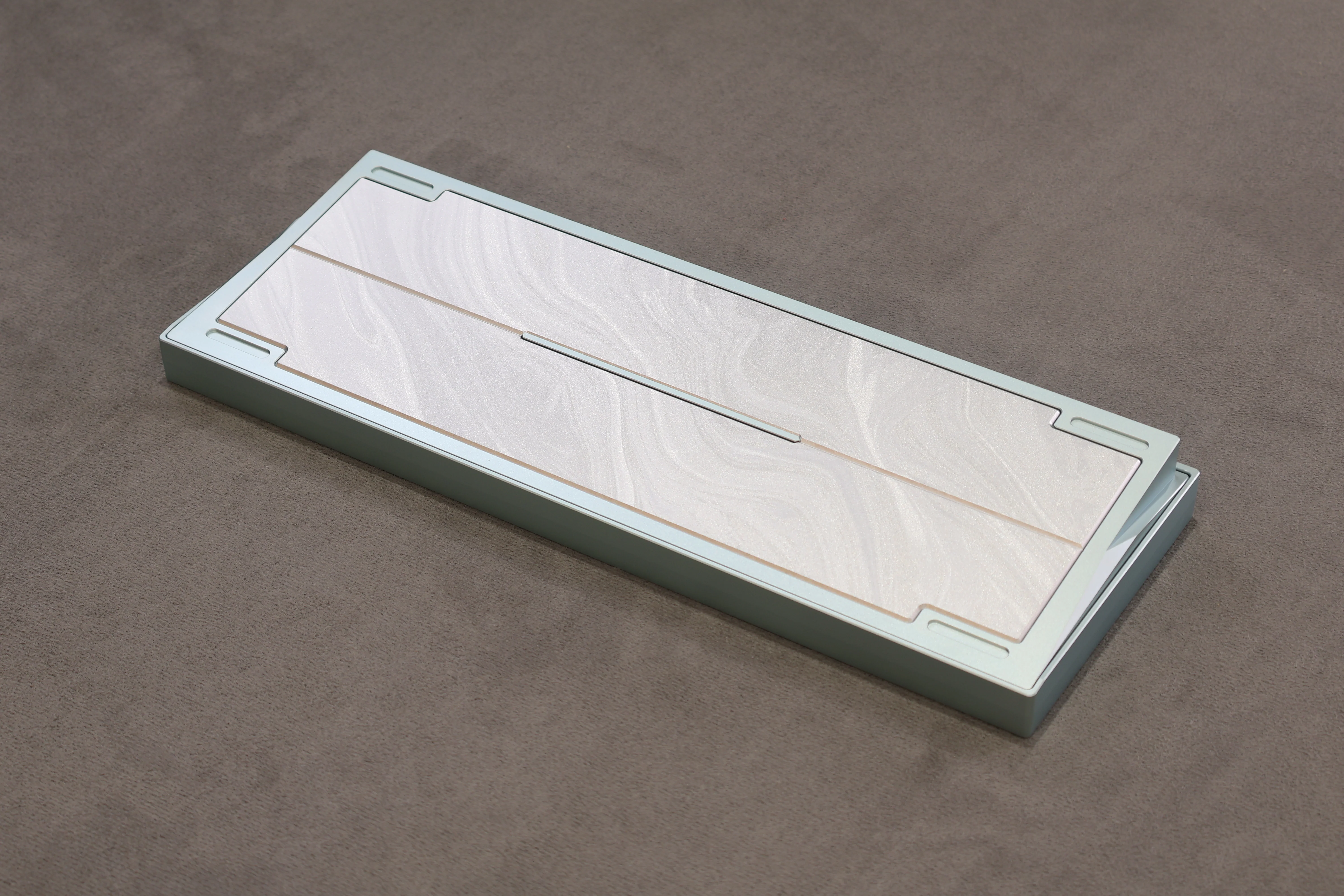

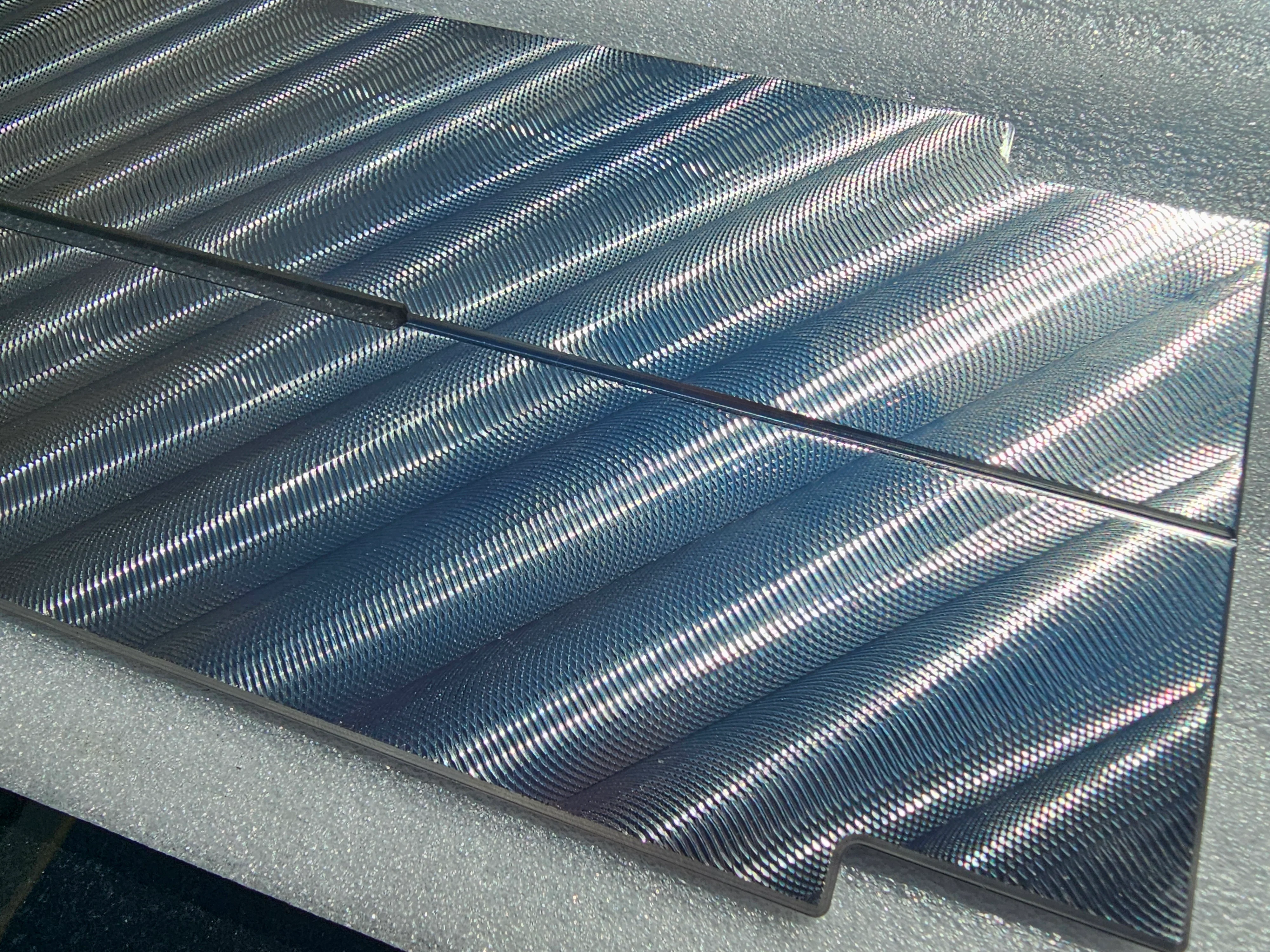

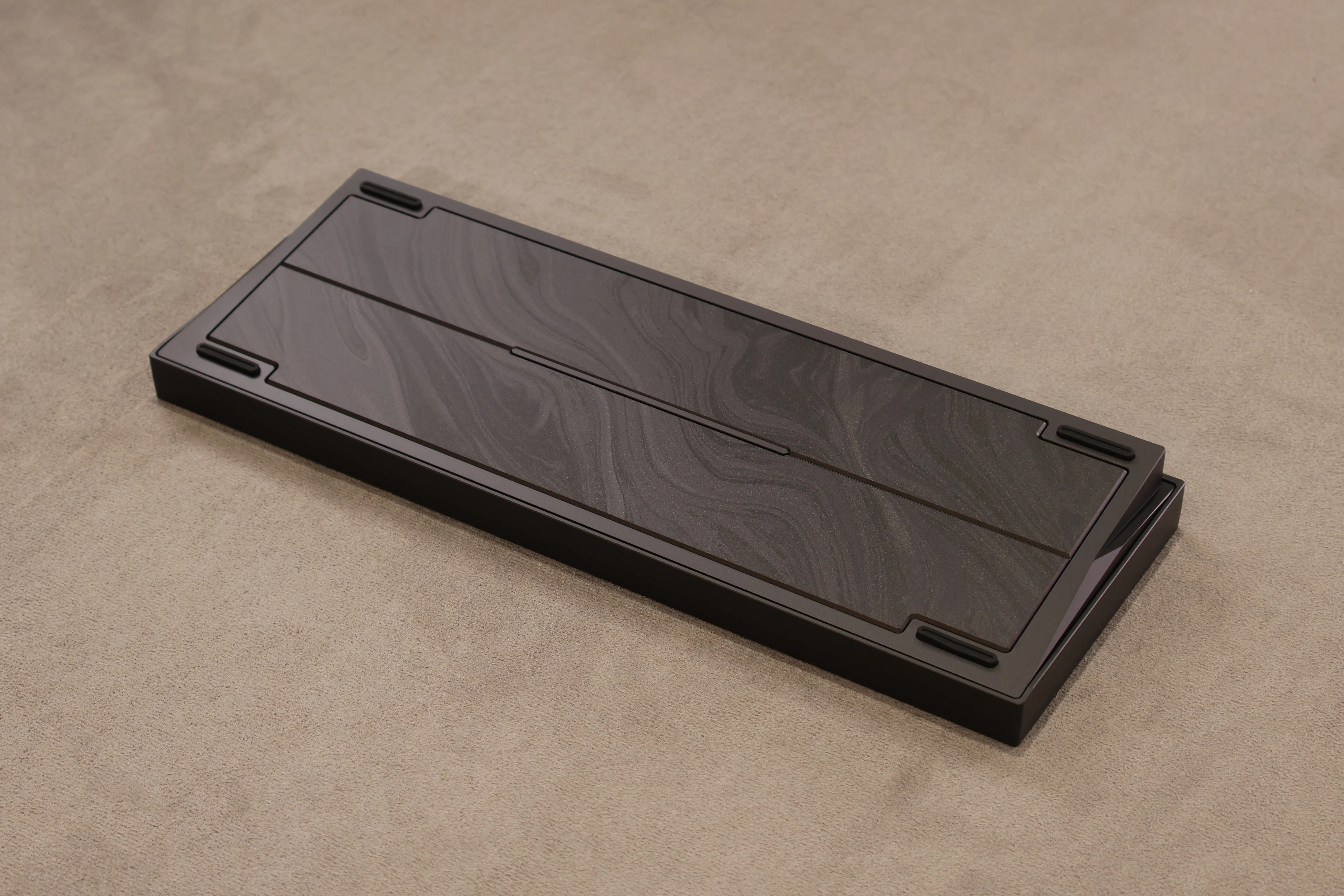

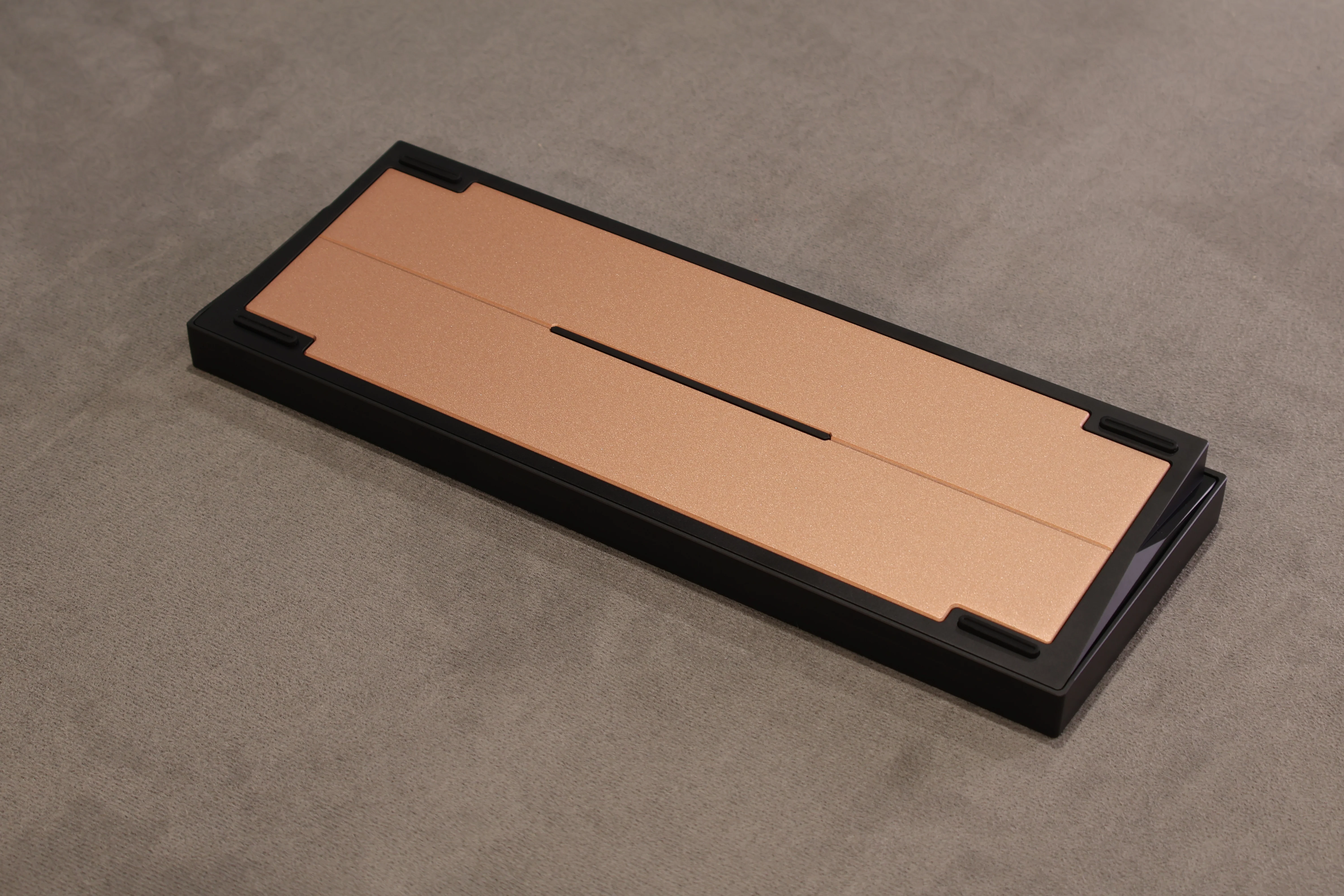

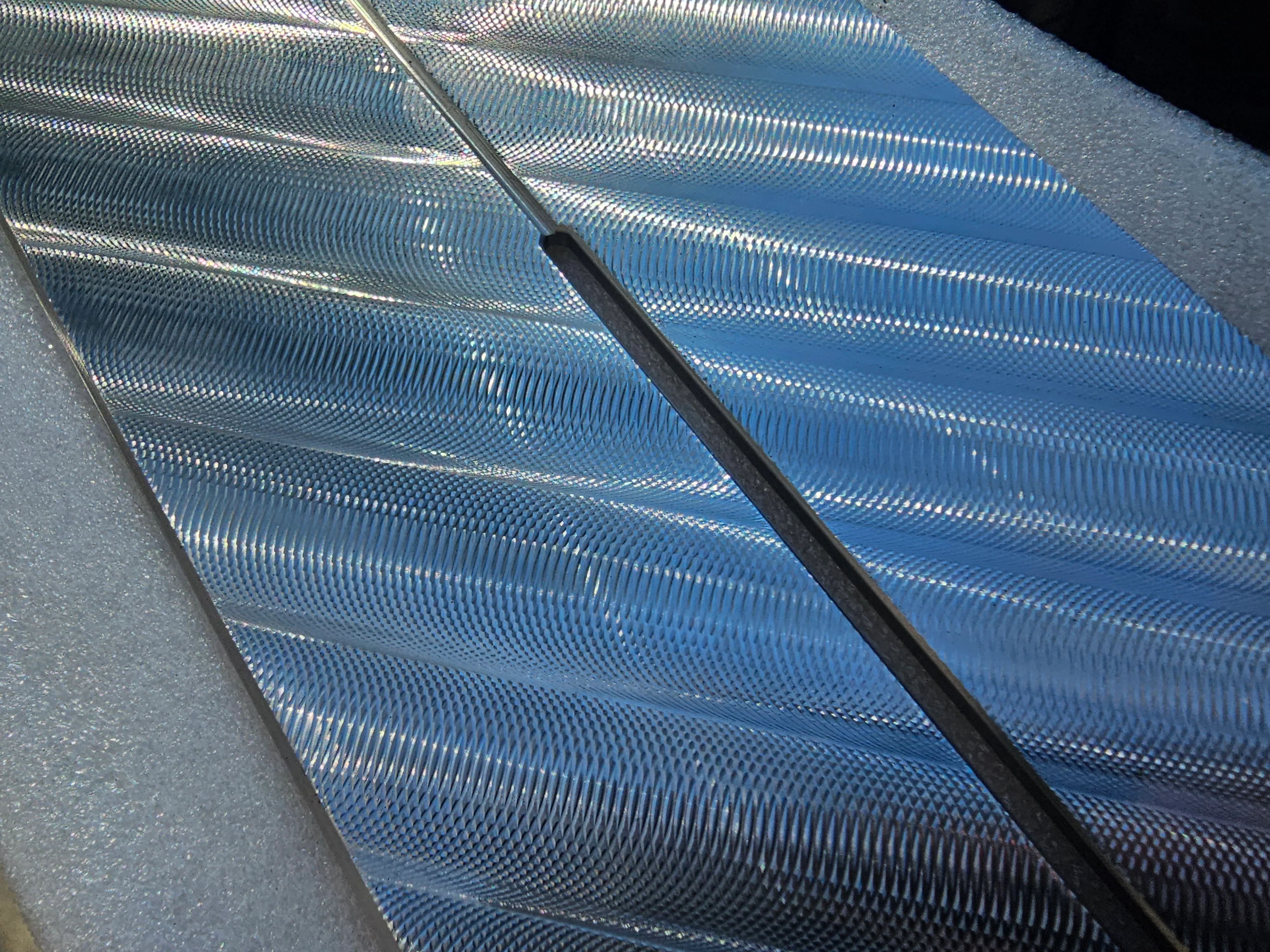

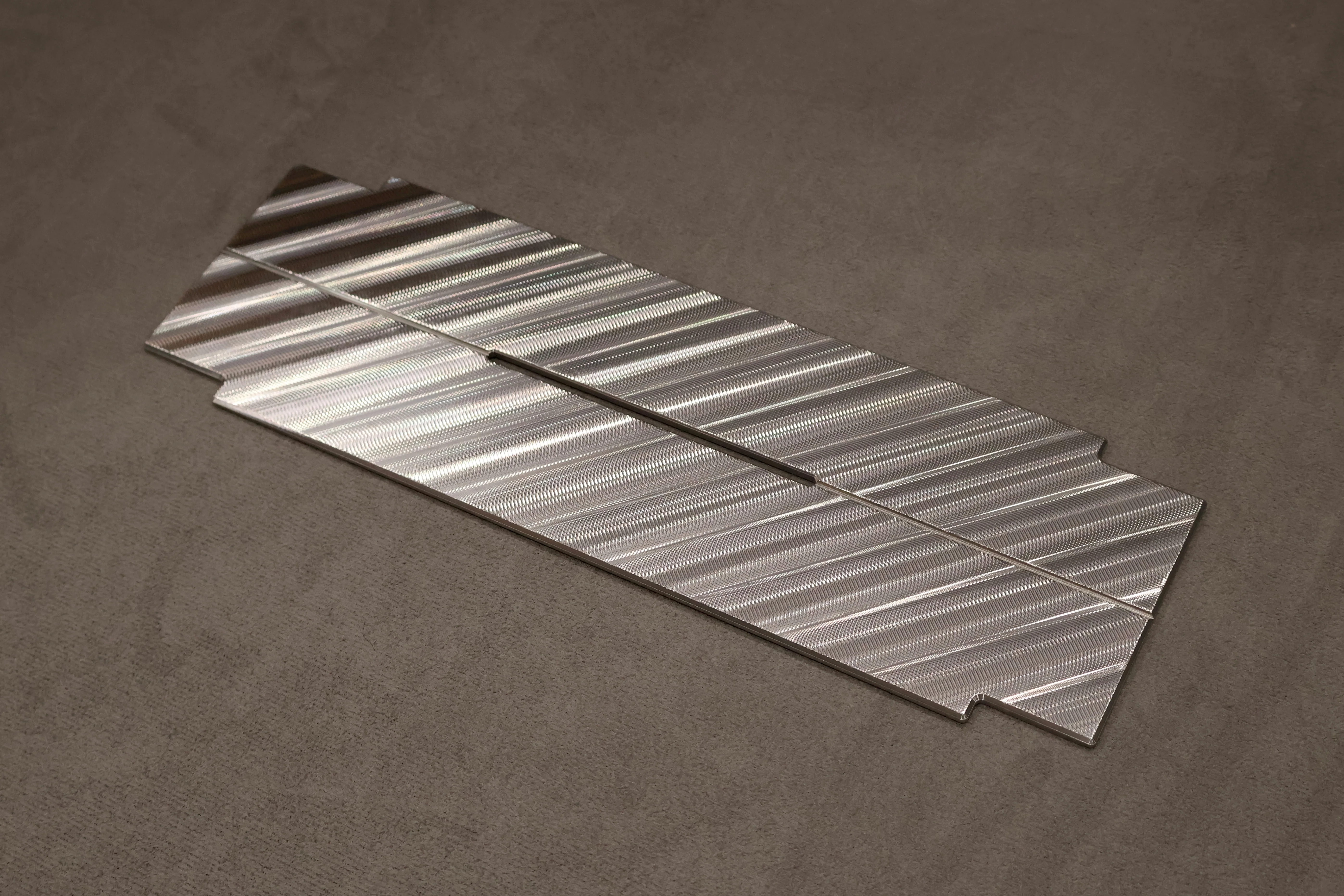

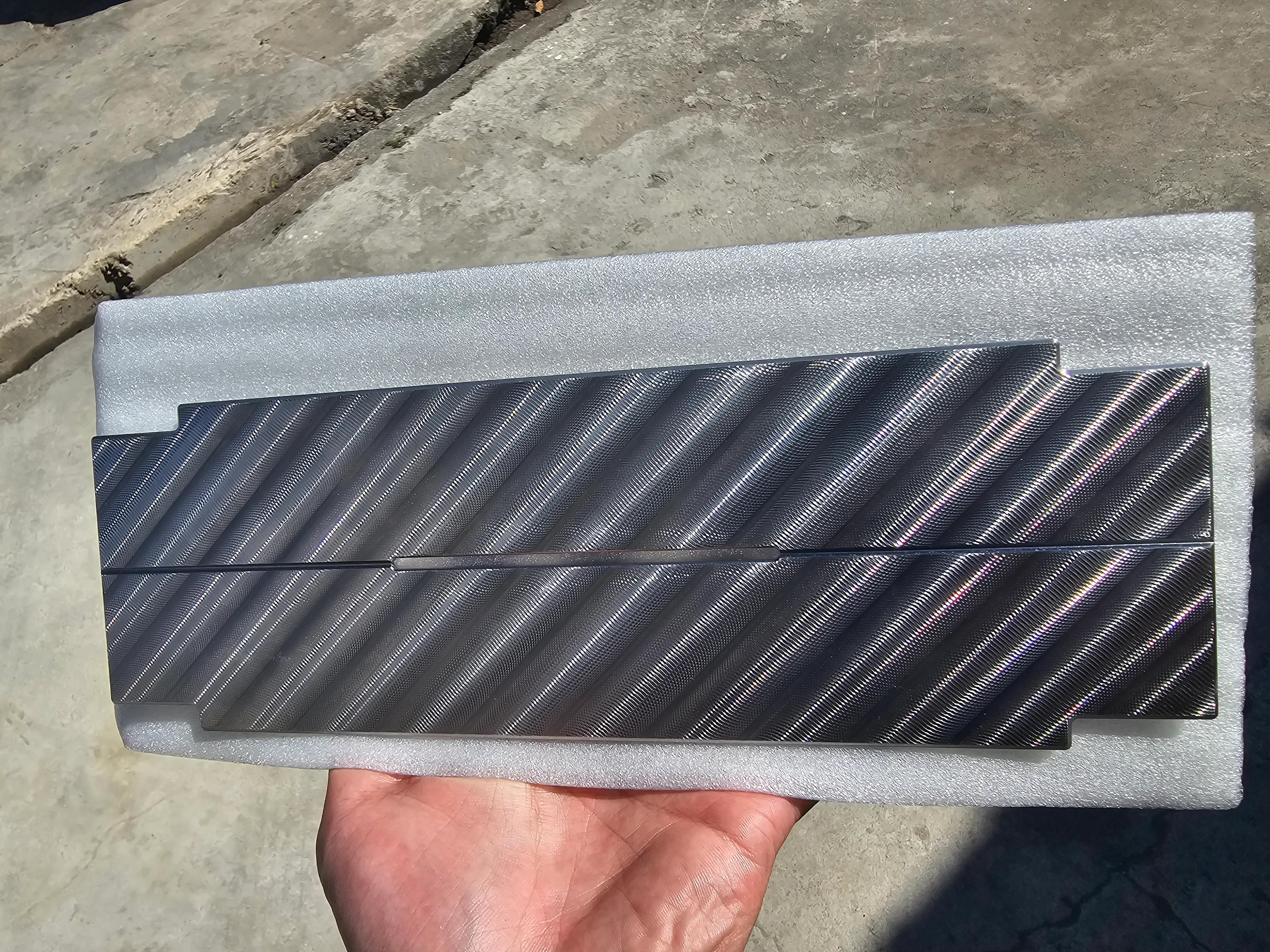

Weight: Stainless steel matte PVD / Mirror PVD / Red copper
Case Weight: 1.4kg
Weight with switches and keycaps: 1.76kg
Size: 313×113mm
Typing Angle: 8°
Compatible System: Support Windows & Mac
Battery: 5000mAh (2500mAh*2)
Rolling rate: 1000Hz (Wired), 125Hz (Bluetooth, 2.4G)
Front Height: 16.9mm

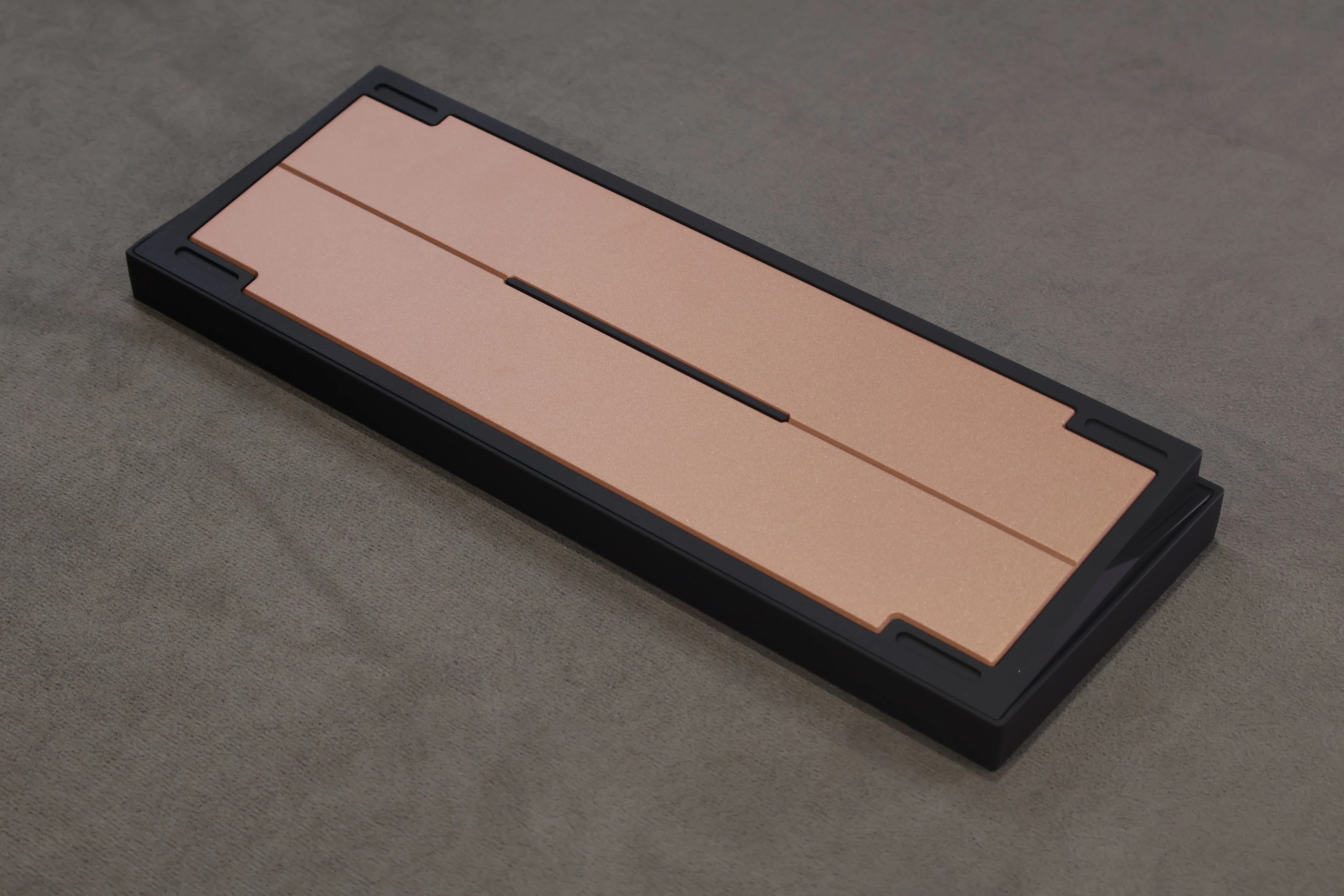

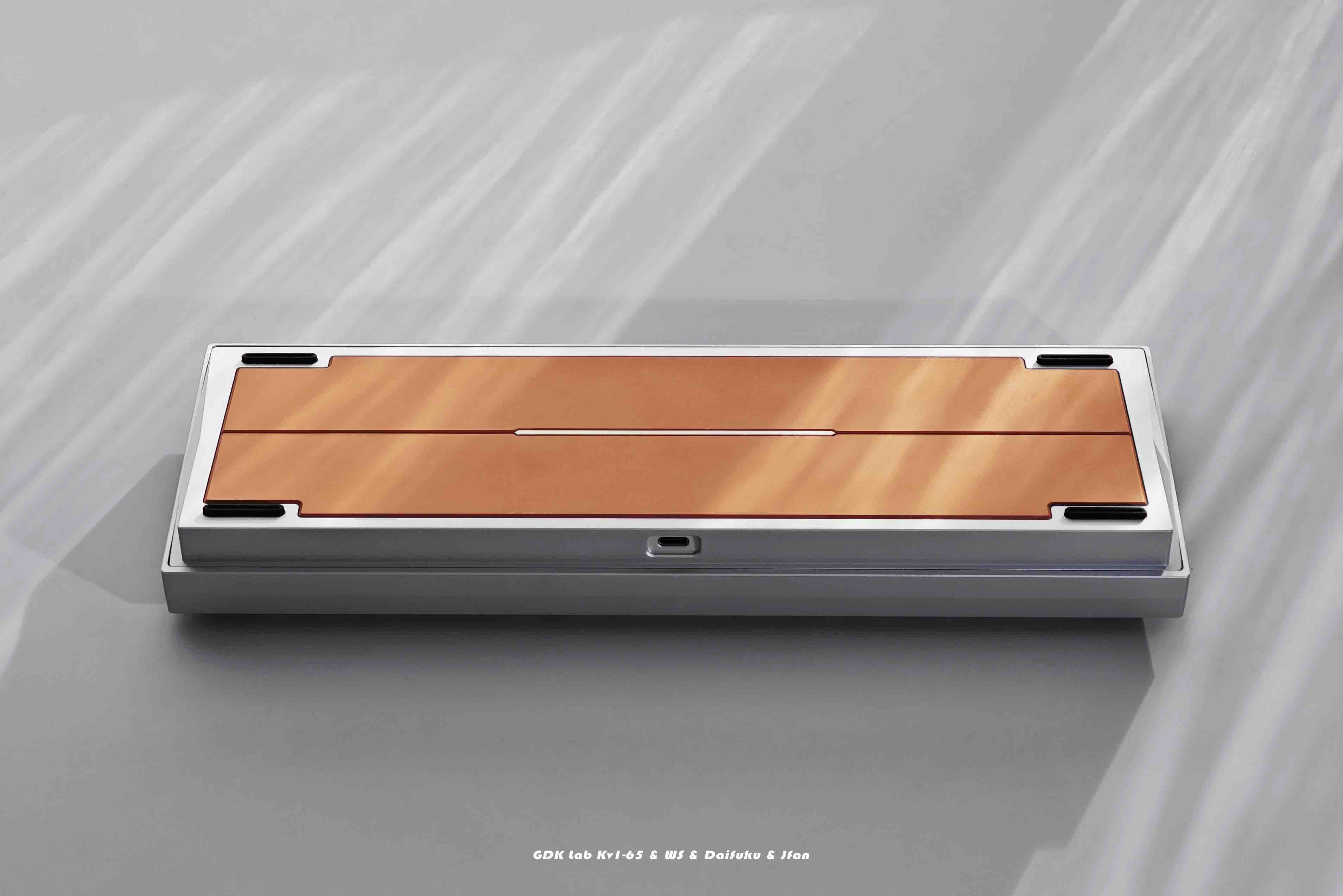

Badge: Red copper

Plate
Alu material
1.6 mm thickness
Without flex-cuts
Support ANSI layout
Support stepped caps lock
Support 6.25U spacebar
Compatible with PCB stabs

PCB
Hotswappable
1.6 mm thickness
Without Flex-cuts
PCB mount stabs compatible with tri-mode PCB (single mode PCB only compatible with Plate mount stabs )
Support ANSI layout
Support ANSI Layout
Support QMK/VIA
Support stepped caps lock
Support 6.25U spacebar
No per-key RGB

Inside the box

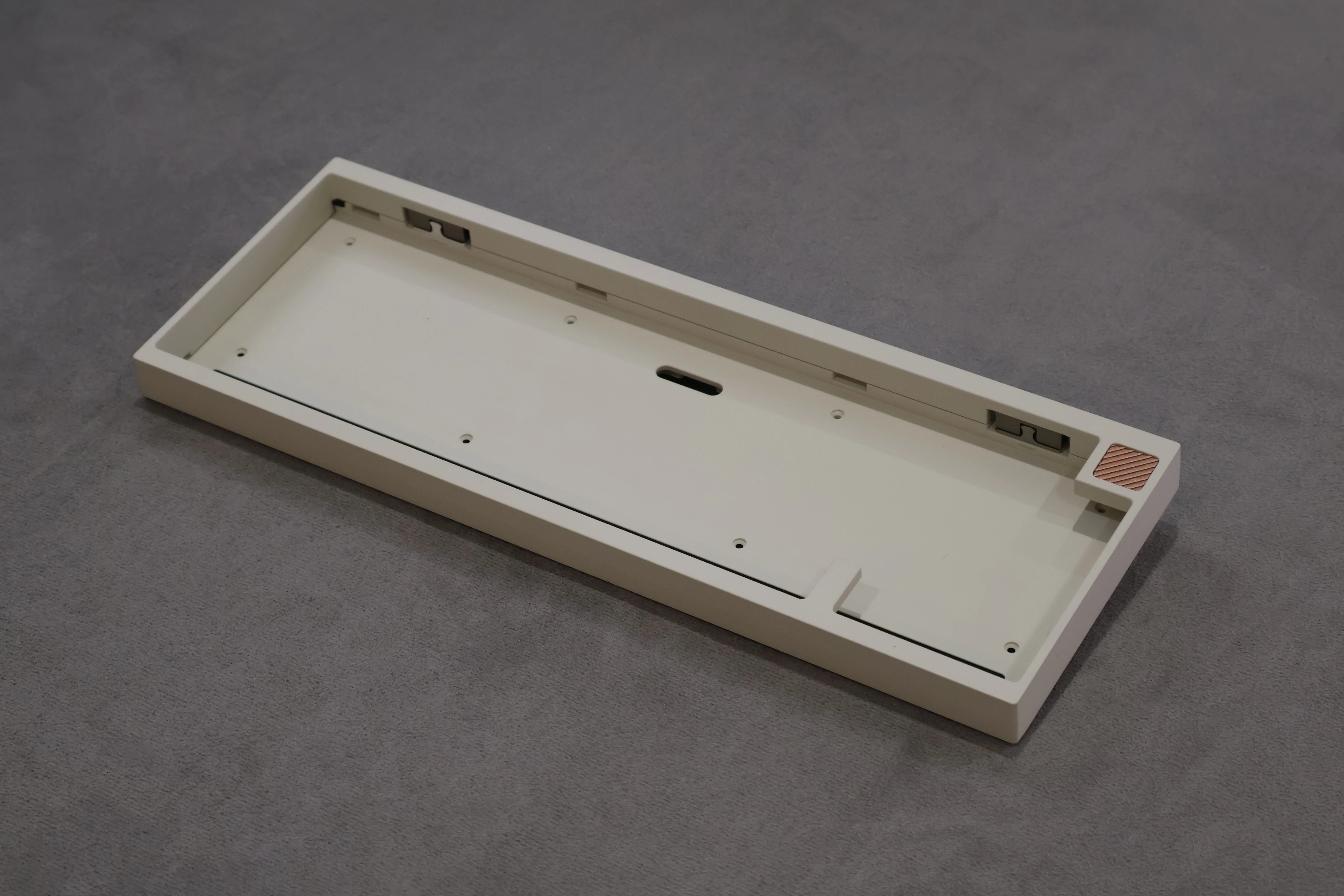

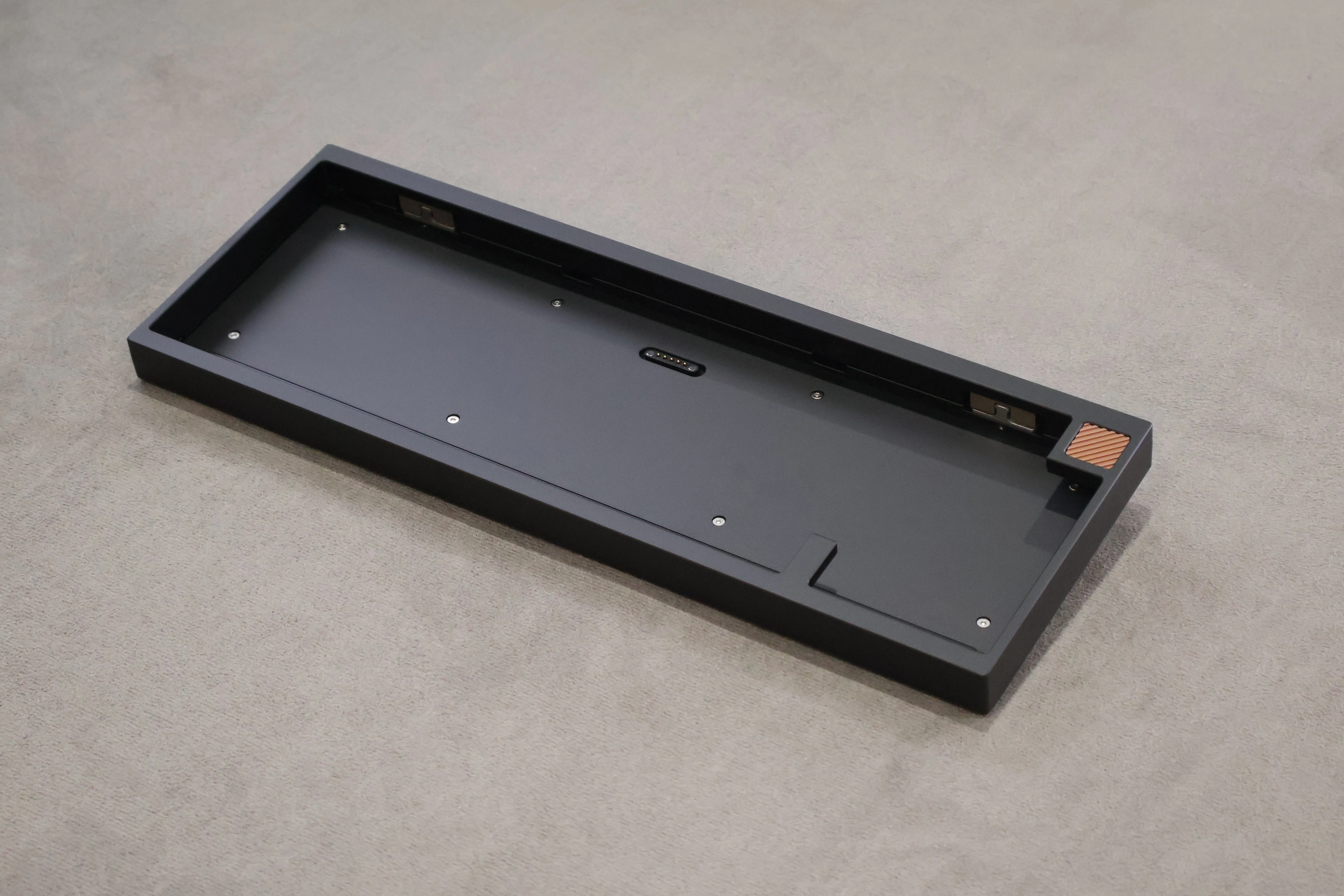

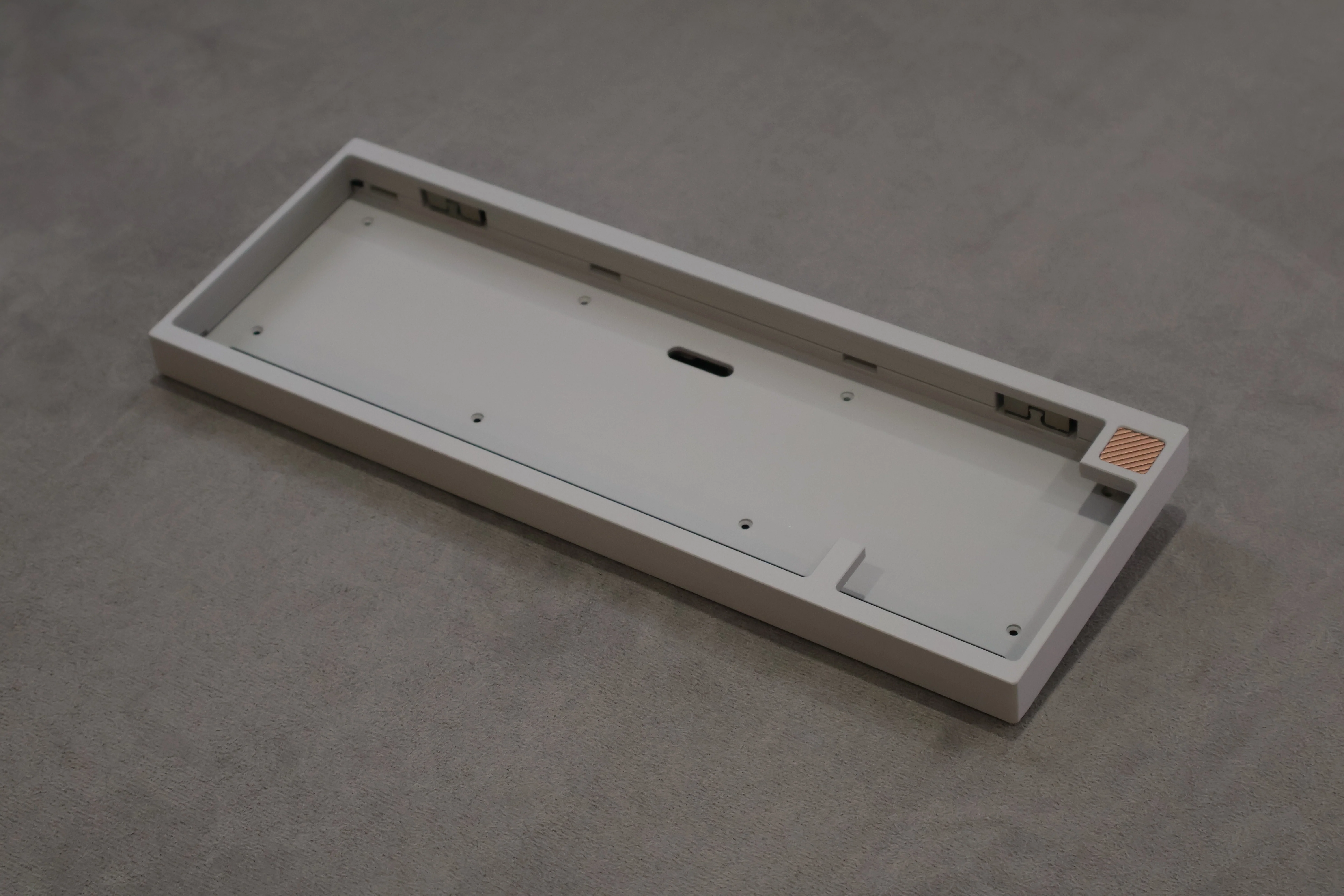

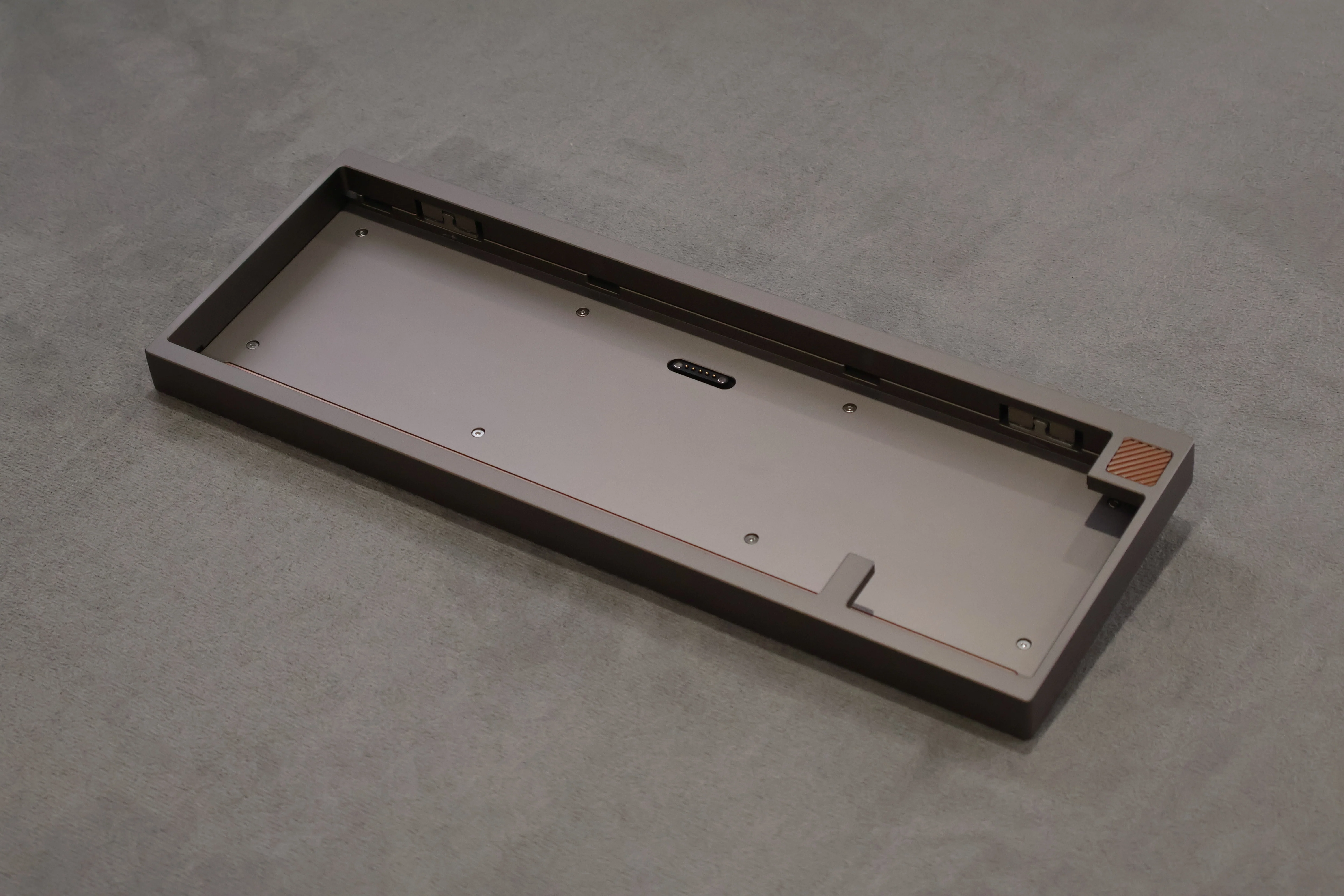

Aluminum top case * 1

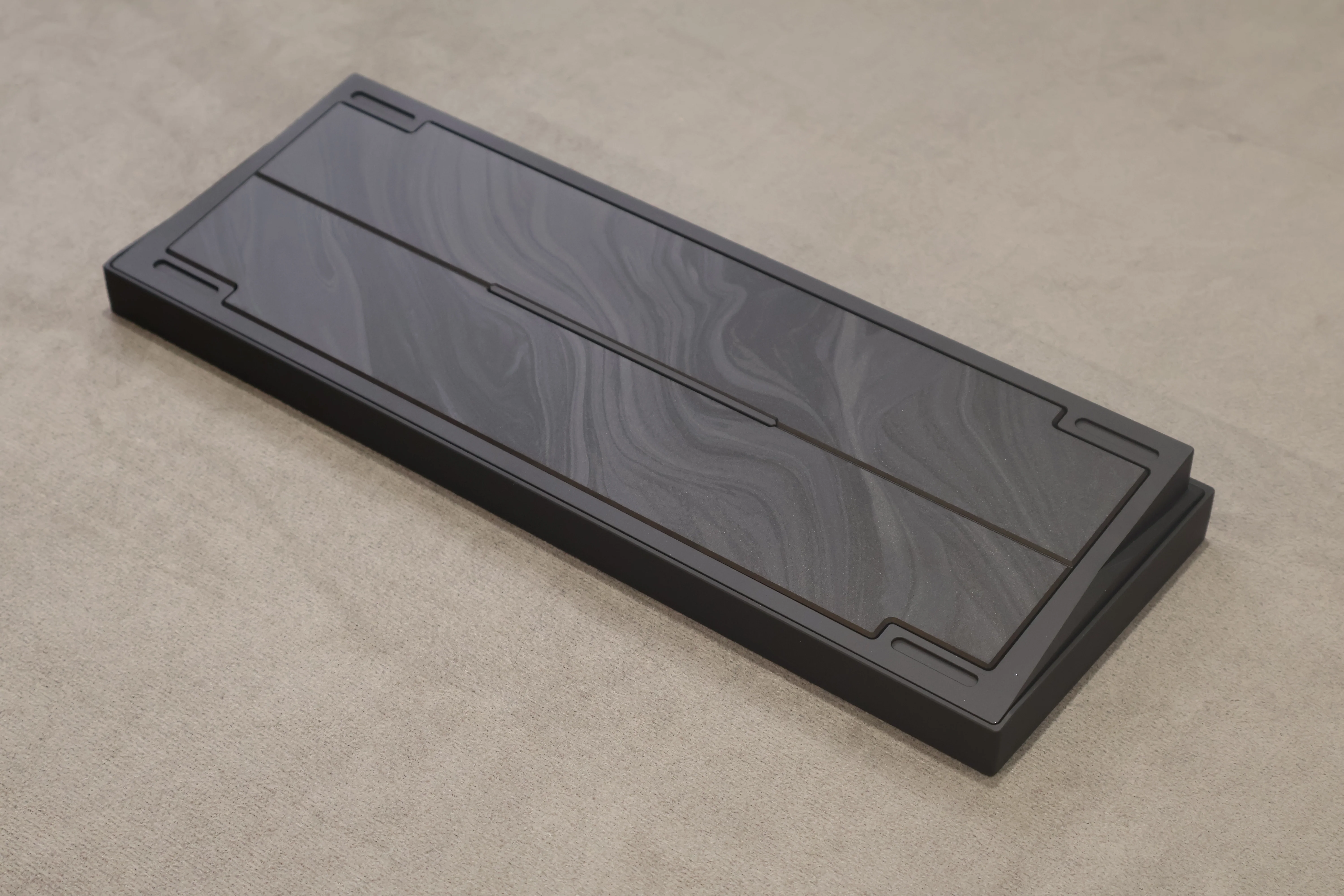

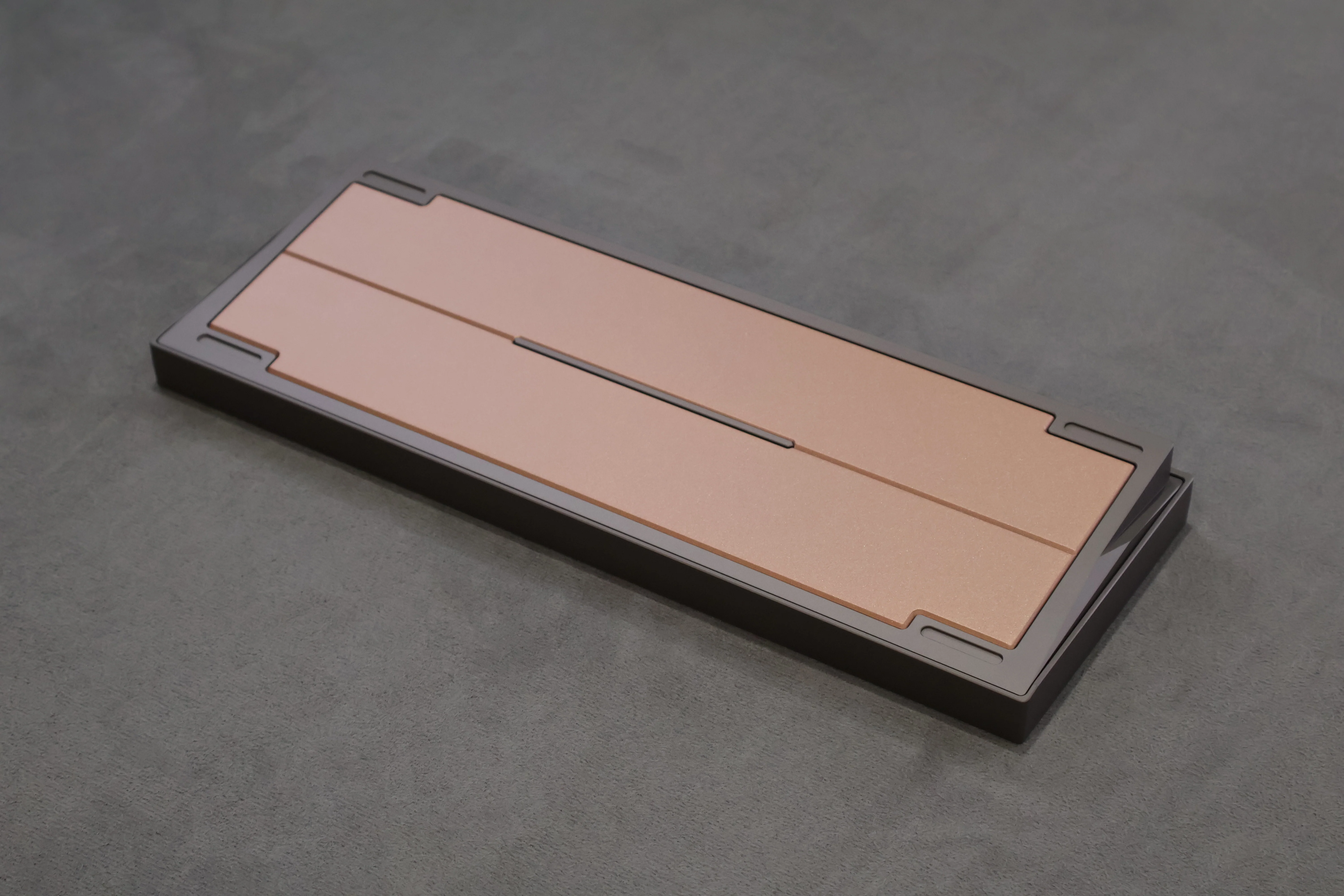

Aluminum/SS/Copper bottom case * 1
copper badge * 1
Alu Plate * 1
Hot-swappable PCB * 1
Type-C  cable * 1
Screw bag * 1
Foot pad * 4
Plate stabs
Packaging box * 1
